PFA 里衬仪表接头
材质表
外壳: ASTM A48 grade 25
里衬: PFA
尺寸表
| 单位:公厘 | |||||||
| Norminal | Size | F | F' | A | P | t | t' |
| INCH | mm | ||||||
| 1"x1" | 25x25 | 50.8 | 50.8 | 50 | 90 | 3 | 3 |
| 1-1/2"x1" | 40x25 | 73.2 | 50.8 | 50 | 100 | 3 | 3 |
| 2"x1" | 50x25 | 91.9 | 50.8 | 50 | 114 | 3 | 3 |
| 2-1/2"x1" | 65x25 | 104.6 | 50.8 | 50 | 127 | 4.1 | 3 |
| 3"x1" | 80x25 | 124 | 50.8 | 50 | 140 | 4.1 | 3 |
| 4"x1" | 100x25 | 157.2 | 50.8 | 50 | 165 | 4.1 | 3 |
| 6"x1" | 150x25 | 212.7 | 50.8 | 50 | 200 | 4.1 | 3 |

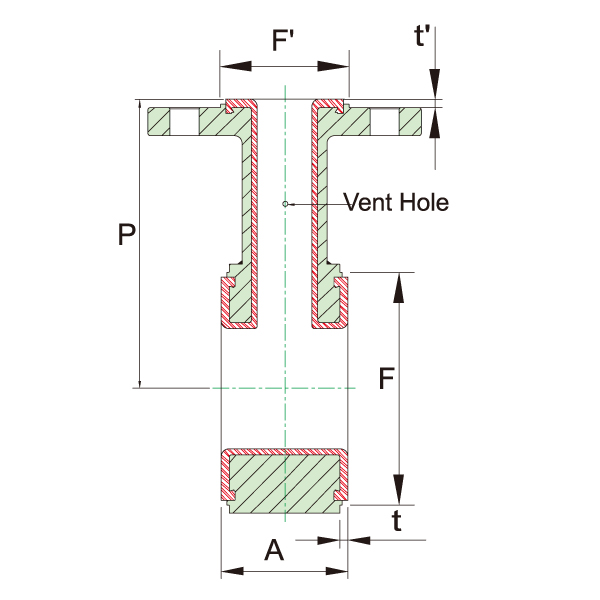

结构图
