PFA 公管牙90度弯头
订购热线：0512-65853646
产品详情
尺寸表
| T | NPT | HEX | (A) | B | ØC | ØD | W | |
| ME-H1-N1 | 3.18X2.18 | 1/8" | 11 | 25.8 | 17.5 | 2 | 3 | 7.6 |
| ME-H1-N2 | " | 1/4" | " | " | 21.5 | " | 6 | " |
| ME-H2-N1 | 6.35X3.95 | 1/8" | 16 | 34 | 18 | 4 | 3 | 10 |
| ME-H2-N2 | " | 1/4" | " | " | 22 | " | 6 | " |
| ME-H2-N3 | " | 3/8" | " | " | " | " | 10 | " |
| ME-H3-N2 | 9.53X6.35 | 1/4" | 19 | 40.2 | 24 | 6.3 | 6 | 14 |
| ME-H3-N3 | " | 3/8" | " | " | " | " | 10 | " |
| ME-H3-N4 | " | 1/2" | " | " | 27.8 | " | 12 | " |
| ME-H4-N2 | 12.7X9.53 | 1/4" | 24 | 48.5 | 26.5 | 10 | 6 | 18 |
| ME-H4-N3 | " | 3/8" | " | " | " | " | 10 | " |
| ME-H4-N4 | " | 1/2" | " | " | 30.3 | " | 12 | " |
| ME-H4-N6 | " | 3/4" | " | " | 30.6 | " | 16 | " |
| ME-H6-N4 | 19.05X15.8 | 1/2" | 32 | 61.5 | 34.8 | 16 | 12 | 27 |
| ME-H6-N6 | " | 3/4" | " | " | 37.1 | " | 16 | " |
| ME-H8-N6 | 25.4X22.2 | " | 41 | 73.1 | 42.1 | 22 | " | 34 |
| ME-H8-N8 | " | 1" | " | " | 46.4 | " | 22 | " |

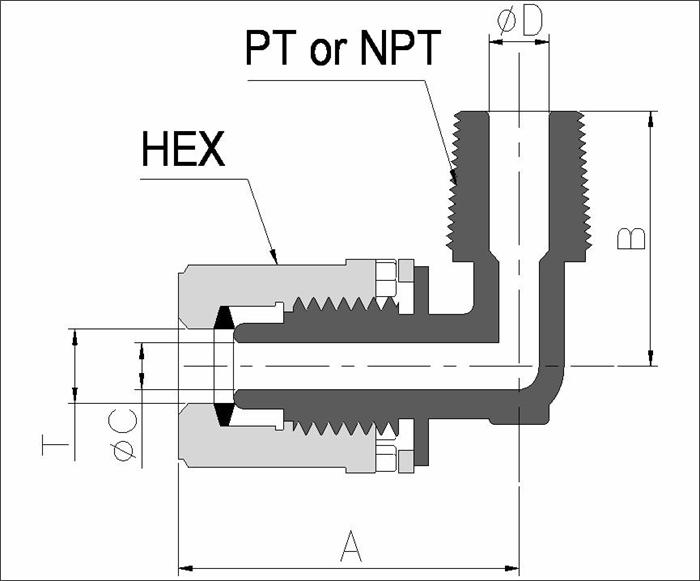

结构图
