PFA 管节套接头
BIT FIT-ONE接头以简单的形状设计提供了容易安装并防止管件脱落的解決方法。
BIT FIT-ONE 接头特点有能抵抗更強大的拉力，及绝佳的密封性；易锁紧低压力损失和高度优越的液体置换性；锁紧指示-能指示最佳锁紧的位置又不致损坏接头。
尺寸表
| | T | NPT | HEX1 | HEX2 | (A) | (B) | C |
| MCT-H1-N1 | 3.18X2.18 | 1/8" | 11 | 13 | 33.8 | 18.8 | 9 |
| MCT-H2-N1 | 6.35X3.95 | 1/8" | 16 | 20 | 38.5 | 23.5 | 9 |
| MCT-H2-N2 | " | 1/4" | " | " | 42.5 | " | 13 |
| MCT-H2-N3 | " | 3/8" | " | " | " | " | " |
| MCT-H3-N3 | 9.53X6.35 | 3/8" | 19 | 23 | 46.7 | 27.7 | '' |
| MCT-H3-N4 | " | 1/2" | " | " | 50.5 | " | 16.8 |
| MCT-H4-N4 | 12.7X9.53 | 1/2" | 24 | 29 | 57.1 | 33 | 16.8 |
| MCT-H4-N6 | " | 3/4" | " | " | 57.4 | " | 17.1 |
| MCT-H6-N6 | 19.05X15.8 | 3/4" | 32 | 38 | 65.4 | 41 | " |
| MCT-H6-N8 | " | " | " | " | 69.7 | " | 21.4 |
| MCT-H8-N8 | 25.4X22.2 | " | 41 | 49 | 76.7 | 48 | 21.4 |
单位: mm
所有尺寸仅供参考
"T" 为适用之管的管外径及管内径

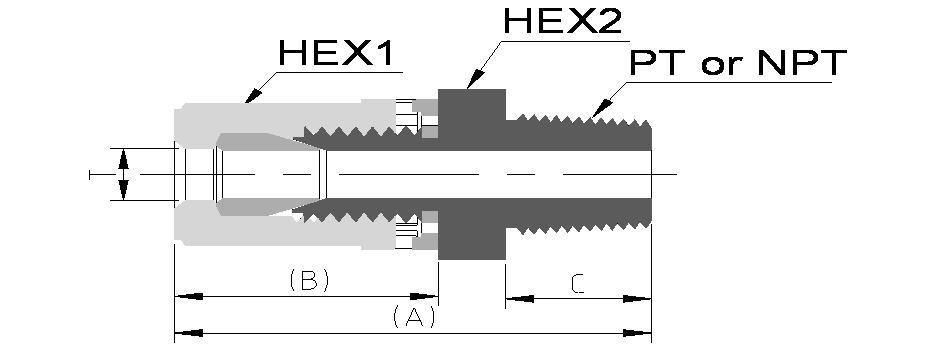

结构图
